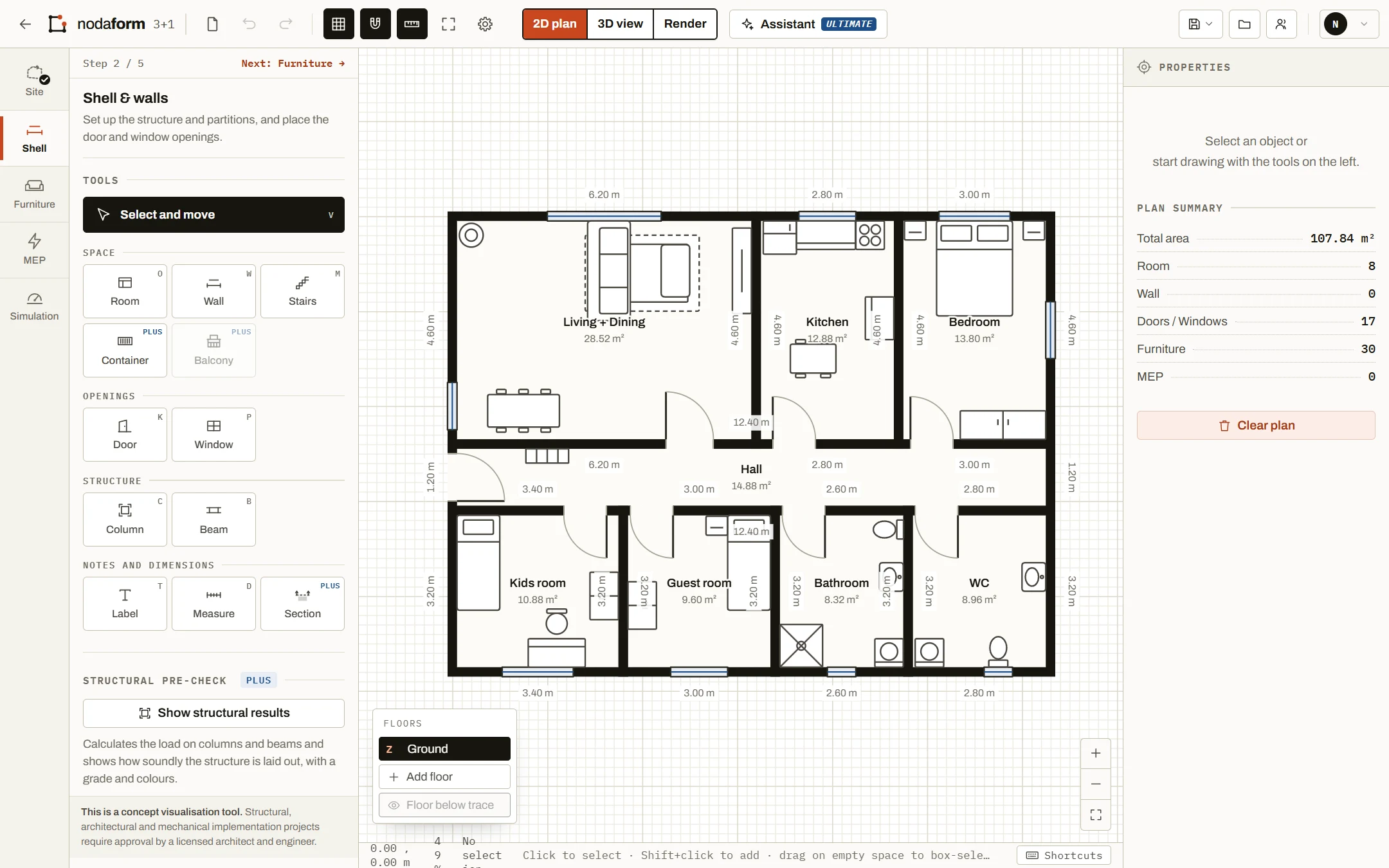

Type a dimension and the wall is drawn. Get 3D, sections, elevations and drawing sheets from the same plan; forget a column and the plan warns you. No installation, it runs in your browser.

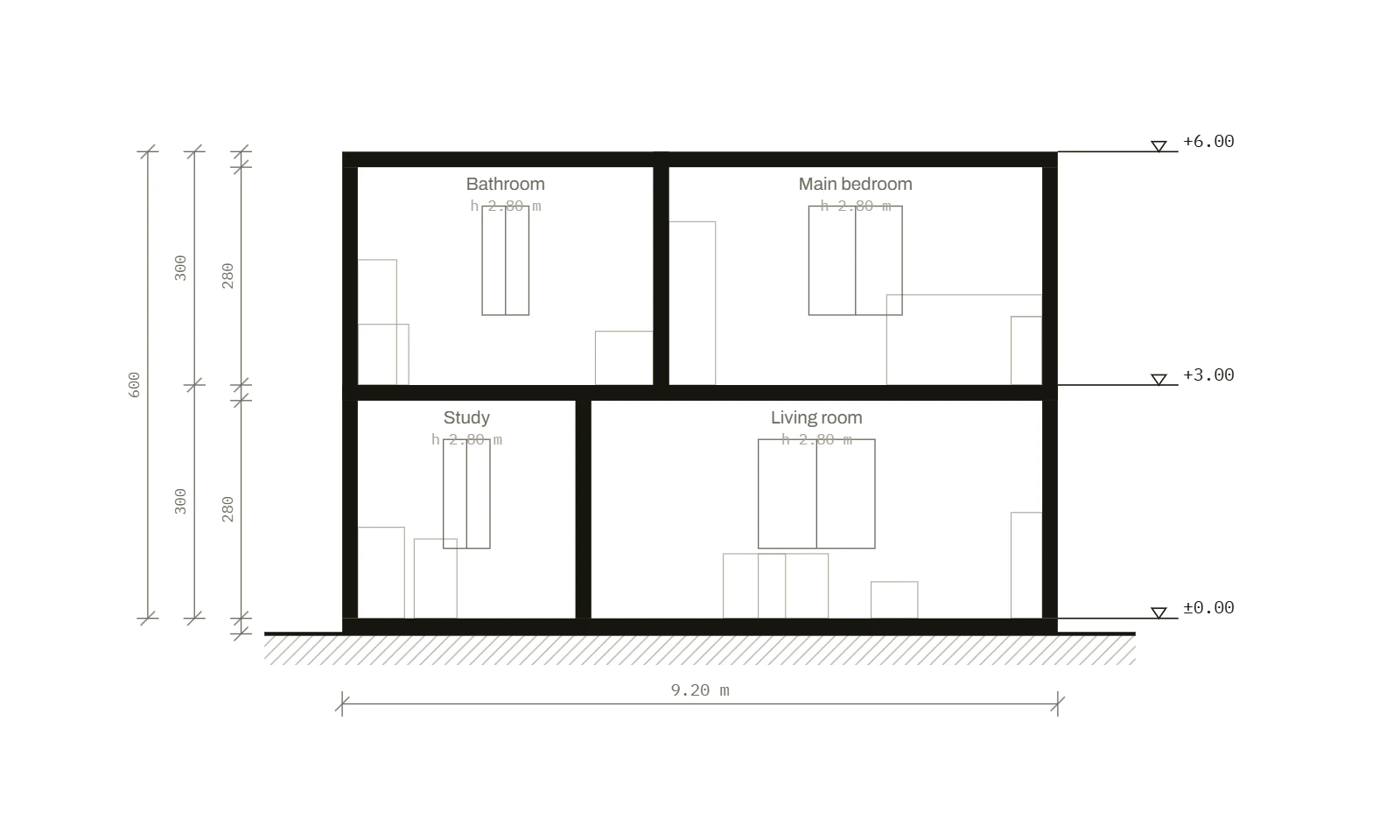

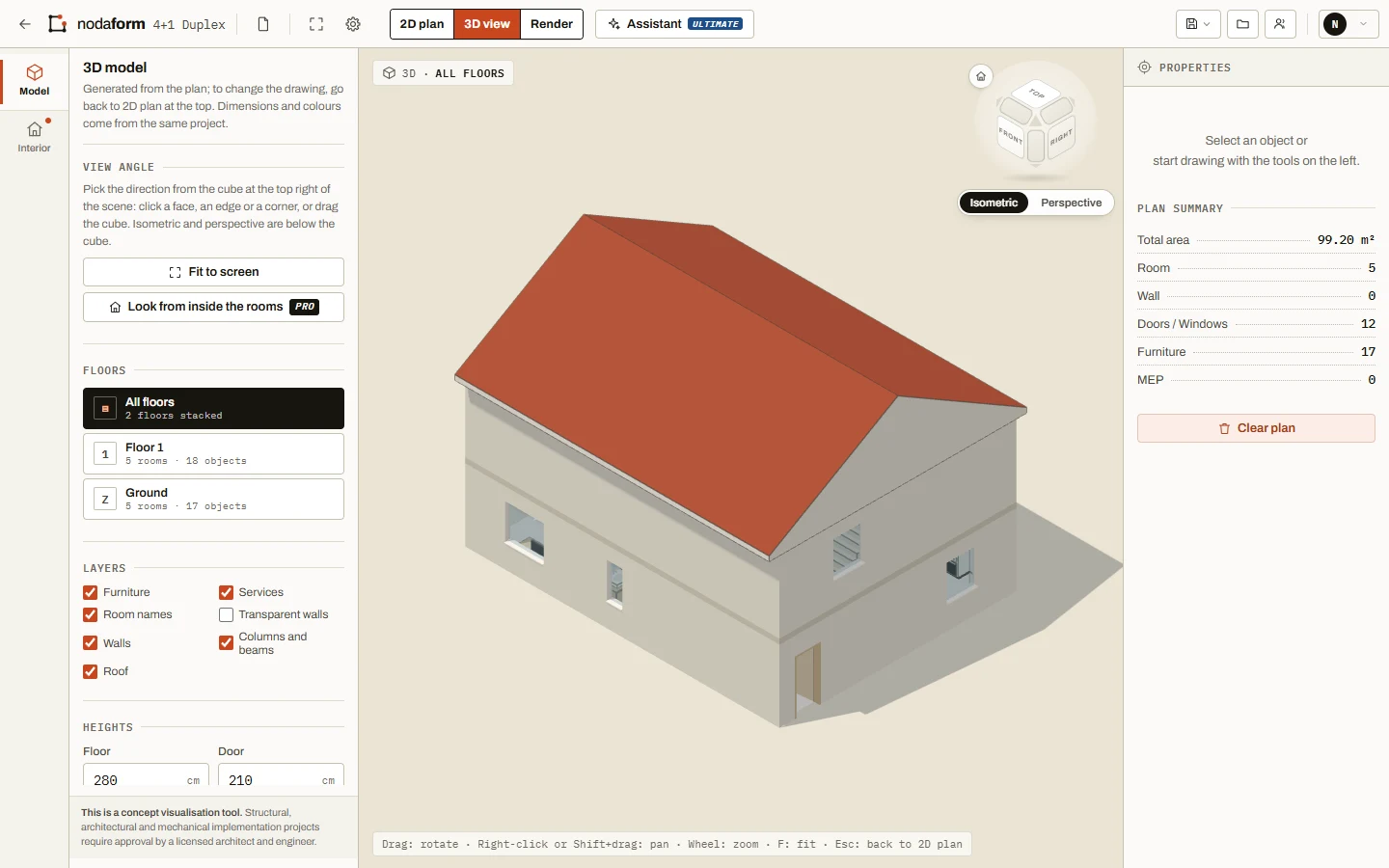

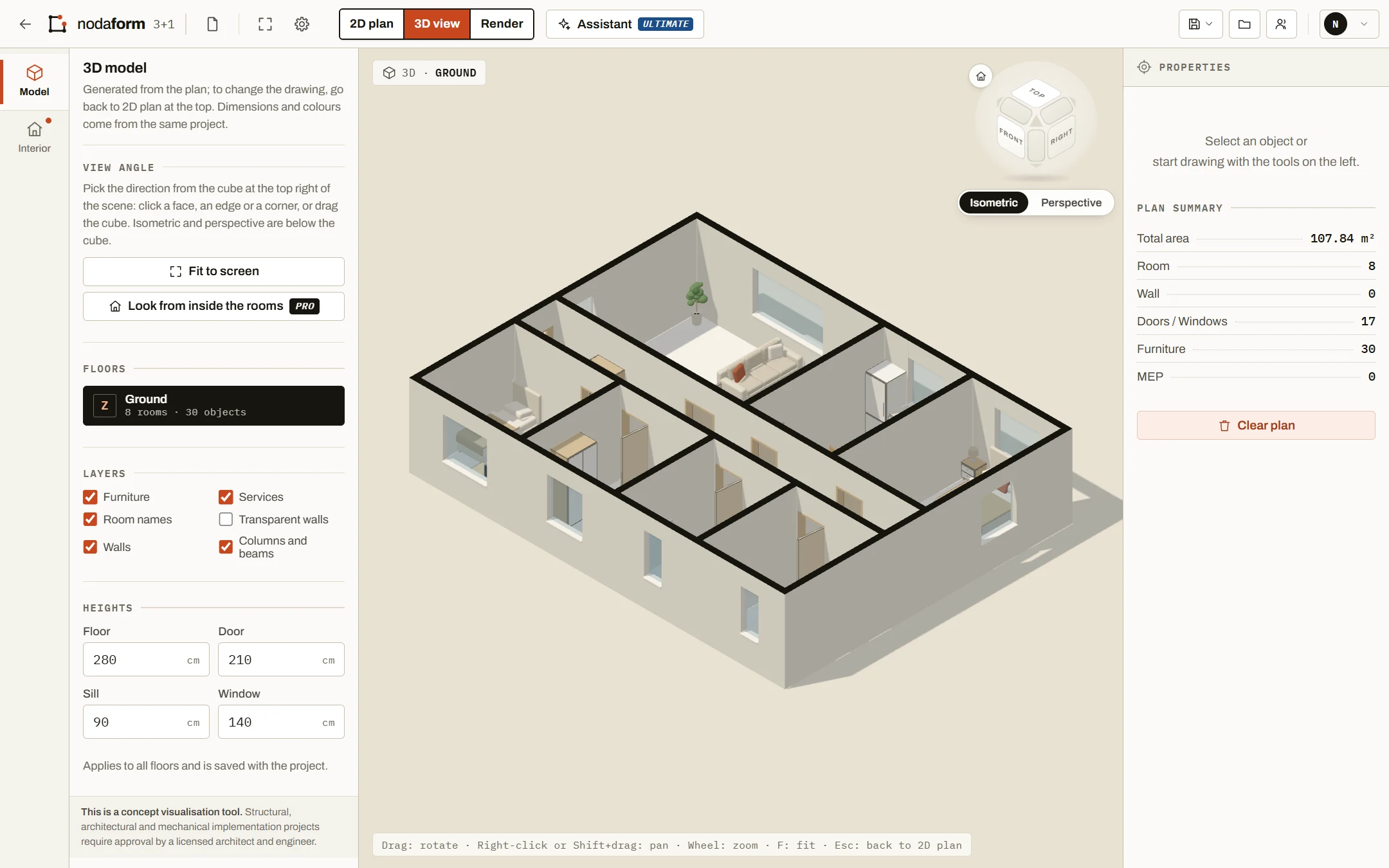

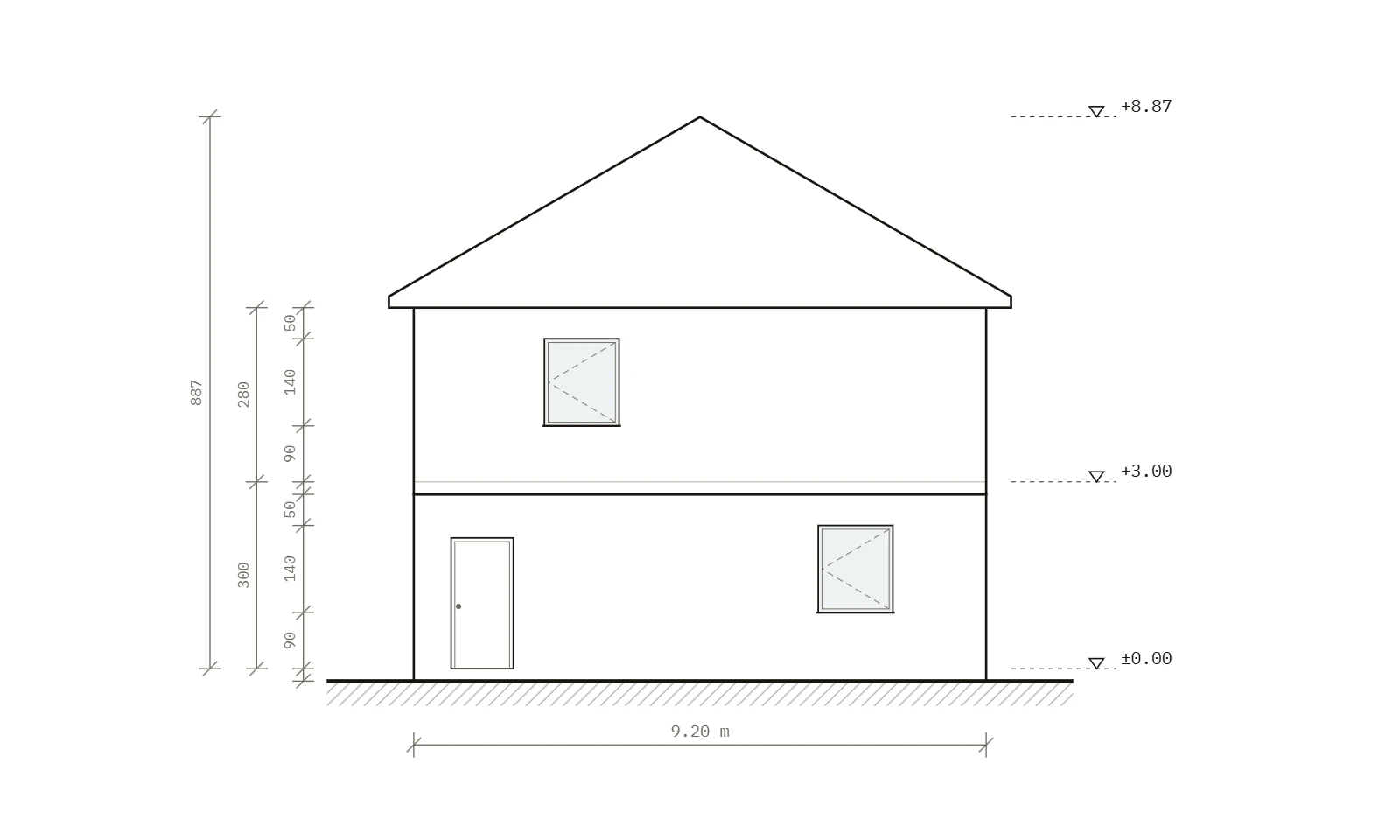

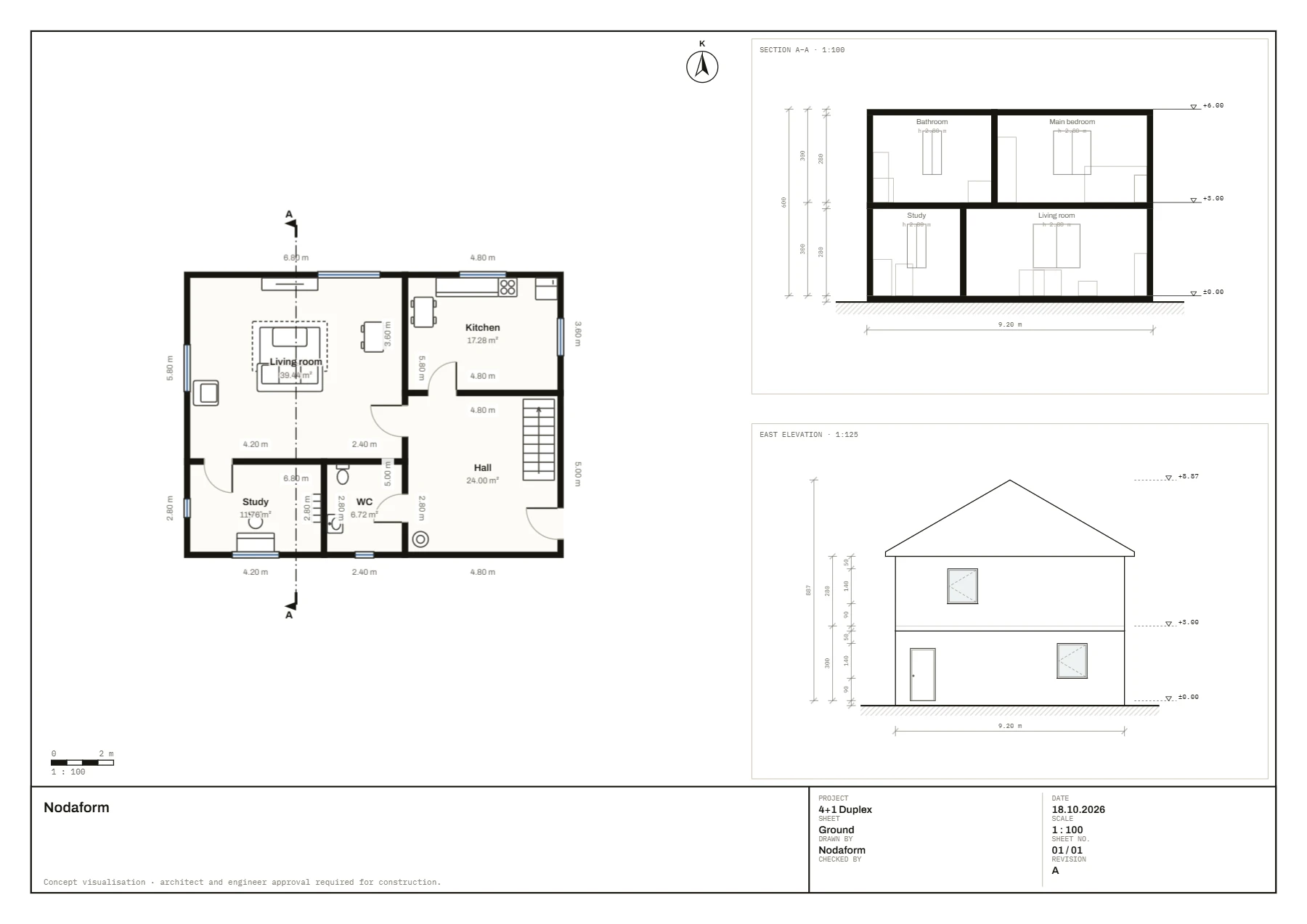

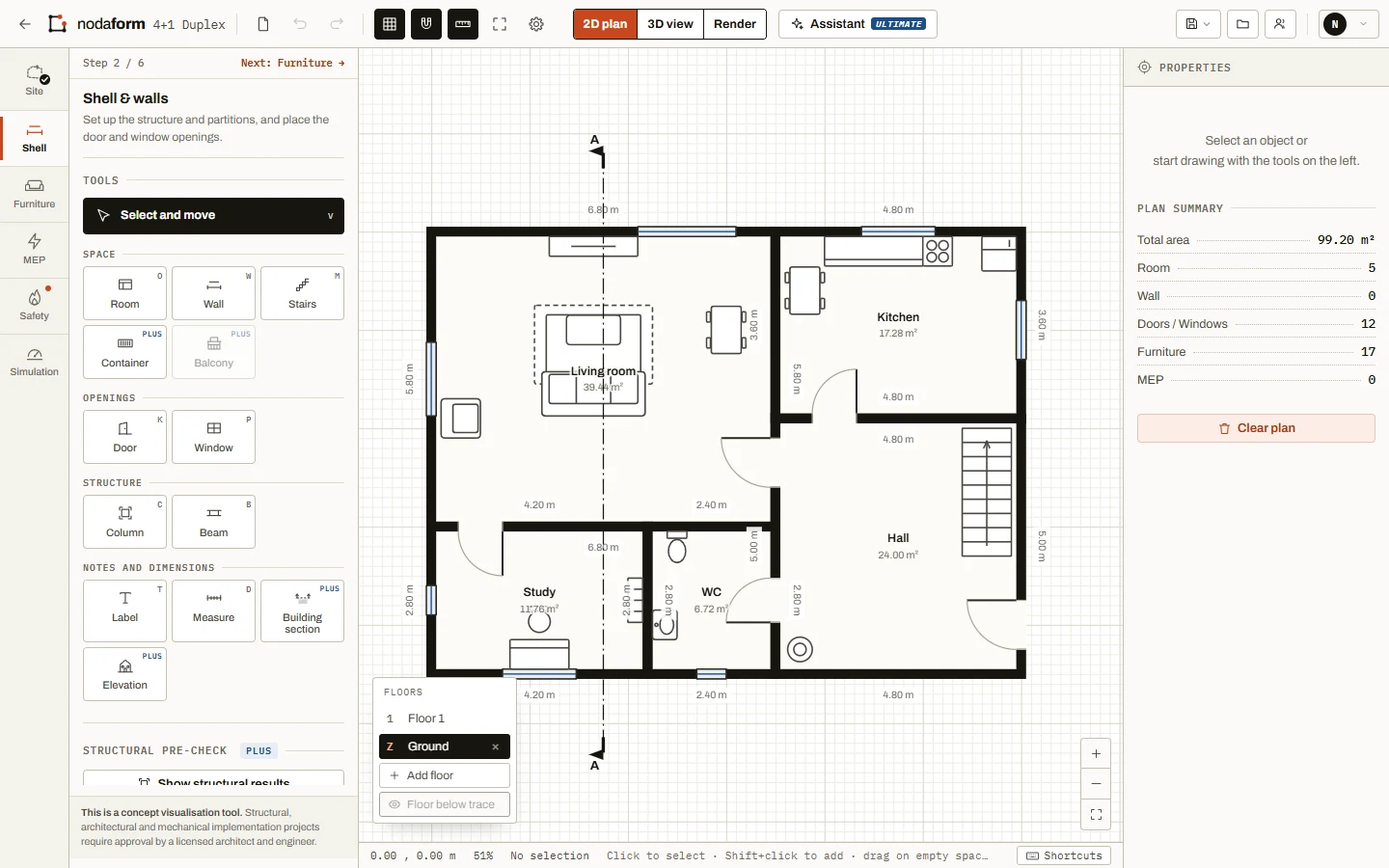

You draw the walls once; the 3D model, section, elevation, scaled sheet and realistic render are all generated from the same plan. When you change the plan, they all change together.
It tells you when you forget a column, turns what you type into a plan and shows the plan like a photo. All on the screen you draw on.
Loads on columns, beams and slabs are calculated as you draw; any member that falls short turns red, with what you need to do.
A pre-check based on TBDY 2018 and TS 500; it does not replace the structural design.
Structural pre-check →Get rooms, doors, windows and furniture done with a sentence; don't like it? Undo in one step.
Add a 3.20 × 4.00 m bedroom to the right of the living room. Door from the living room, a 120 cm window on the north wall, and a double bed inside.
Turns your 3D shot into a realistic image; nothing is added that isn't in the plan.
3D modelRender
From supermarket shelves to dental chairs; 2D symbols and 3D models at their real size.

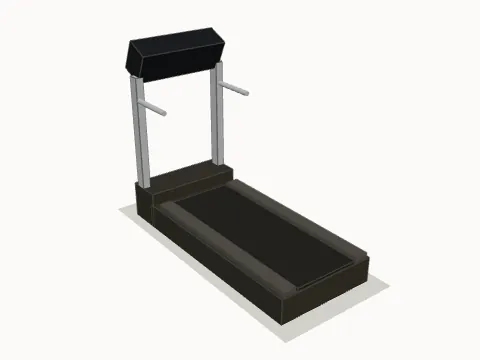

Treadmill

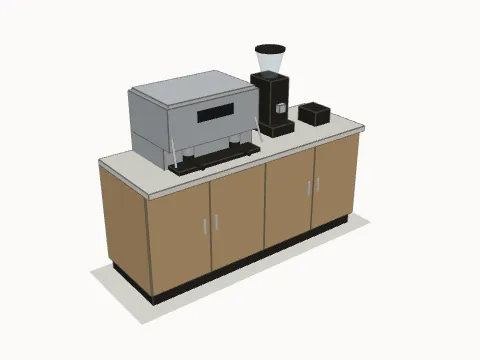

Espresso counter

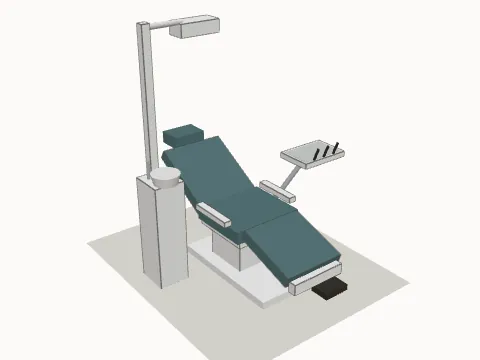

Dental chair
Grand pianoMeasures the walking distance from the farthest point to the exit through the doors, and produces the evacuation sheet.
All on the same plan. Compare with other tools →
First the site, then the walls, the furniture and the sockets, and fire safety last. Each step builds on the one before.
Draw the plot or the building's outline to scale.
FreeWalls, doors, windows, stairs, columns and beams.
FreePlace the furniture; where sockets and drains go follows from it.
FreeSockets, switches, lighting circuits, water and drain lines.
PlusExtinguishers, detectors, emergency exits and an escape distance check.
PlusHowever much you know, use as much as you need; the rest is ready when you are.
Draws their rooms to scale and sees whether the furniture fits without moving a thing.
Homeowners → PlusReal estate agentAdds a measured plan and 3D view to the listing and hands the client a PDF sheet.
Real estate agents → ProArchitect and contractorGets quantities, a cost estimate and a DXF file from the same plan.
Architects → ULTIMATEEngineer and design officeExports to BIM via IFC and calculates the electrical load.
BIM and IFC →Plans unlock new tools and outputs; the drawing stays the same. Cancel anytime.
Rooms, walls, doors and windows, 30 basic furniture items, 3D of a single floor, PNG export.
3D with all floors and the roof, sections, elevations, scaled PDF, electrical & plumbing, structural pre-check, 340+ objects.
AI assistant and render, interior walkthrough, quantity take-off, cost estimate, DXF, shared editing.
BIM model and IFC, voltage and load simulation, clash detection, 50 renders a month (2K included).
The drawing tools are always free: rooms, walls, doors, windows, 30 basic furniture items, 3D of a single floor and PNG export are in the Free plan, and you can save 5 projects to your account. Scaled PDF, sections, elevations and electrical & plumbing are in Plus; AI is in Pro.
No. Nodaform runs in your browser; an up-to-date browser on Windows, Mac or Linux is all you need. Your plans are saved to your account, so you can pick up where you left off on another device.
Turn your phone sideways and the full editor opens. Held upright, you can open and show your saved plans.
Yes. Room and wall dimensions are interior dimensions, as in architectural drawings; the wall thickness is added outwards. If you like, you can switch to centreline or exterior dimensions in the settings.
PNG in Free; scaled vector PDF sheets in Plus; DXF in Pro; IFC in Ultimate. You can also download the project file as .json.
No. The structural pre-check, fire check and cost estimate are meant for the concept stage; construction drawings need approval from a licensed architect and engineer.
In landscape you can draw walls, rooms, doors, windows and furniture. A computer is more comfortable for large plans.
